The G-Box is available with 1 handle bar adaptor (G), or with 2 handle bar adaptors (G2).
It controlls the main electrical functions with push buttons on your motorcycle from a central location.
The Electronicbox provides the following functions:
– Lightcontrol with switch and pushbutton possible
– Lightcontrol
– Integrated flasher relay
– emergency flash function
– flasher function with automatic off
– Control of horn
– Control of starter relais
– control of engine stop function possible with 1 or 2 buttons
– Brake light control
– control from neutral – and stand switch possible.
– 8 Status led´s on the cable side for an easy and fast wiring check.

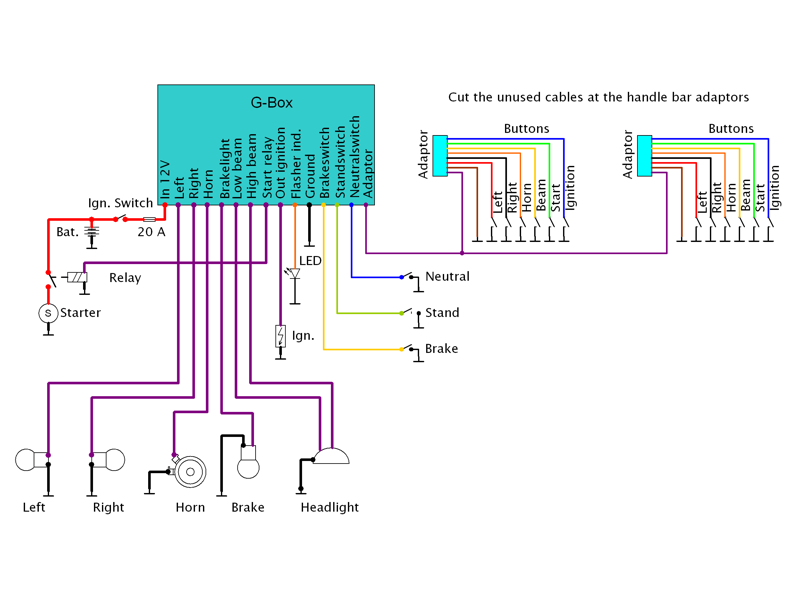

The handle bar adaptor(s) is/are connected to the push buttons and only one thin cable is the connection
between handle bar adaptor and box. This reduces the amount of cables in the bike.
Manual (pdf) in text form, infos more in detail
Manual (pdf) in image form, good for implement it in the bike
| Dimensions: | 52 mm length x 12,5 mm wide x 42 mm height, Adaptor 24 x 10 x 8mm |
| Body material: | shock resistant ABS plastic, waterresist potted |
| Case Color: | Black |
| Connections: | 0,5 qmm for input, 1 qmm for power output |
| Power consumption in operation: | 7 mA |
| Maximum temperature: | 80 degree Celsius |
| Maximum output current: | 5 Ampere Head light, 3 Ampere for other outputs |
| Input voltage range: | 7 – 18 Volt |
| Maximum current of the 12V ignition connector: | 20 Ampere |
